3000 PSI rostfreier Stahl 1.4404

Vergrössern

3000 PSI rostfreier Stahl 1.4404

komplett mit M-Schrauben und O-Ringen

Um bestellen zu können, müssen Sie sich anmelden.
Sie haben noch kein Login?
Klicken Sie hier, um Ihr Login anzufordern.

Login anfordern

Ausdrucken

Varianten

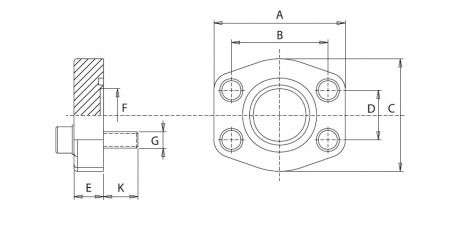

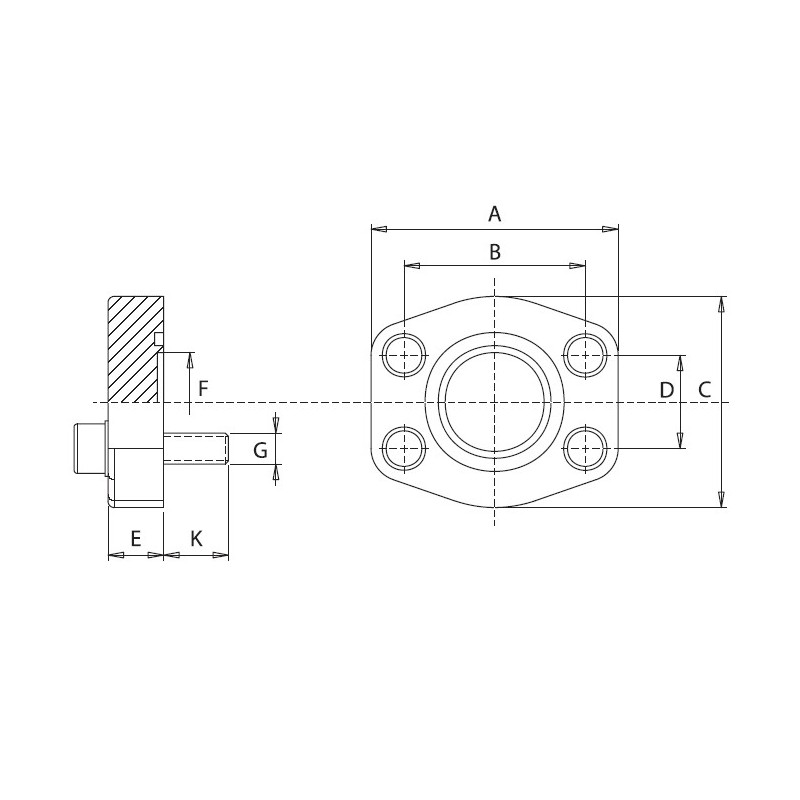

Artikel-Nr.	Variante	Model Code	max. Betriebsdruck [bar]	A ["]	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	K [mm]	O-Ring	G
070 515 208	1	RF-C.F.C.S. 100-M	348	3/4"	66	47.6	49	22.3	18	16	16	AN214	M10
070 515 212	2	RF-C.F.C.S. 102-M	348	1"	71	52.4	53	26.2	19	25	16	AN219	M10
070 515 213	3	RF-C.F.C.S. 104-M	278	1 1/4"	80	58.7	69	30.2	21	25	18	AN222	M10
070 515 216	4	RF-C.F.C.S. 106-M	210	1 1/2"	95	69.9	77	35.7	25	34	19	AN225	M12
070 515 221	5	RF-C.F.C.S. 108-M	210	2"	103	77.8	89	42.9	25	43	19	AN228	M12
070 515 226	6	RF-C.F.C.S. 110-M	175	2 1/2"	116	89	101	50.8	25	61	19	AN232	M12
070 515 231	7	RF-C.F.C.S. 112-M	138	3"	136	106.4	124	61.9	27	60	27	AN237	M16
070 515 236	8	RF-C.F.C.S. 114-M	35	3 1/2"	152	120.7	136	69.9	27	73	27	AN241	M16
070 515 241	9	RF-C.F.C.S. 116-M	35	4"	162	130.2	146	77.8	27	87	27	AN245	M16

Details

Model Code	RF-C.F.C.S. 100-M
Model Code	RF-C.F.C.S. 116-M
Model Code	RF-C.F.C.S. 110-M
Model Code	RF-C.F.C.S. 104-M
Model Code	RF-C.F.C.S. 114-M
Model Code	RF-C.F.C.S. 108-M
Model Code	RF-C.F.C.S. 102-M
Model Code	RF-C.F.C.S. 112-M
Model Code	RF-C.F.C.S. 106-M
max. Betriebsdruck [bar]	138
max. Betriebsdruck [bar]	210
max. Betriebsdruck [bar]	348
max. Betriebsdruck [bar]	35
max. Betriebsdruck [bar]	175
max. Betriebsdruck [bar]	278
max. Betriebsdruck [bar]	35
max. Betriebsdruck [bar]	210
max. Betriebsdruck [bar]	348
A ["]	3"
A ["]	1 1/2"
A ["]	3/4"
A ["]	4"
A ["]	2 1/2"
A ["]	1 1/4"
A ["]	3 1/2"
A ["]	2"
A ["]	1"
A [mm]	162
A [mm]	116
A [mm]	80
A [mm]	152
A [mm]	103
A [mm]	71
A [mm]	136
A [mm]	95
A [mm]	66
B [mm]	130.2
B [mm]	89
B [mm]	58.7
B [mm]	120.7
B [mm]	77.8
B [mm]	52.4
B [mm]	106.4
B [mm]	69.9
B [mm]	47.6
C [mm]	101
C [mm]	69
C [mm]	136
C [mm]	89
C [mm]	53
C [mm]	124
C [mm]	77
C [mm]	49
C [mm]	146
D [mm]	69.9
D [mm]	42.9
D [mm]	26.2
D [mm]	61.9
D [mm]	35.7
D [mm]	22.3
D [mm]	77.8
D [mm]	50.8
D [mm]	30.2
E [mm]	27
E [mm]	25
E [mm]	19
E [mm]	27
E [mm]	25
E [mm]	18
E [mm]	27
E [mm]	25
E [mm]	21
F [mm]	73
F [mm]	43
F [mm]	25
F [mm]	60
F [mm]	34
F [mm]	16
F [mm]	87
F [mm]	61
F [mm]	25
K [mm]	16
K [mm]	27
K [mm]	19
K [mm]	16
K [mm]	27
K [mm]	19
K [mm]	18
K [mm]	27
K [mm]	19
O-Ring	AN237
O-Ring	AN225
O-Ring	AN214
O-Ring	AN245
O-Ring	AN232
O-Ring	AN222
O-Ring	AN241
O-Ring	AN228
O-Ring	AN219
G	M16
G	M12
G	M10
G	M16
G	M12
G	M10
G	M16
G	M12
G	M10
