Danfoss/Eaton Vickers Model SV3-10-C
Cavity C-10-2 Size 10
Um bestellen zu können, müssen Sie sich anmelden.
Sie haben noch kein Login?
Klicken Sie hier, um Ihr Login anzufordern.
Achtung: Letzte verfügbare Teile!
Lieferdatum
Artikel-Nr. | Variante | Model Code | max. Betriebsdruck [bar] | max. Durchfluss [L/Min] | Anschluss | Einschraubbohrung | Dichtung |
---|---|---|---|---|---|---|---|
307 142 450 | 1 | SV3-10-C-000 | 210 | 45 | cartridge only | C-10-2 | Buna-N |
Model Code | SV3-10-C-000 |
max. Betriebsdruck [bar] | 210 |
max. Durchfluss [L/Min] | 45 |
Anschluss | cartridge only |
Einschraubbohrung | C-10-2 |
Dichtung | Buna-N |
Danfoss/Eaton Vickers SV3-10-C/CM/CR - Solenoid Valve

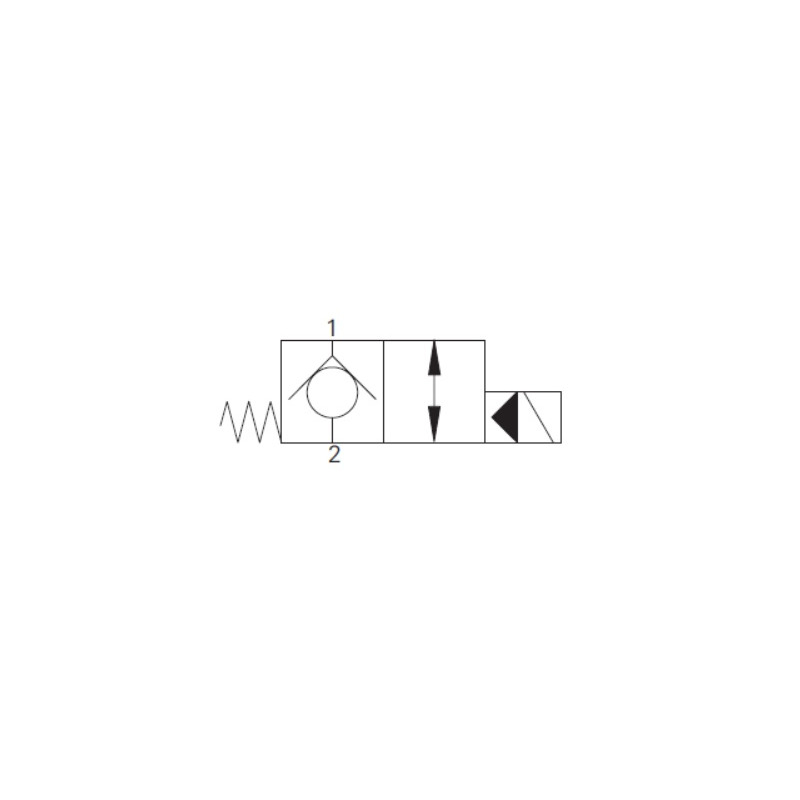

2-way, 2-position, normally closed, poppet type solenoid valve
Operation
In the de-energized position the valve blocks flow from port 2 to 1 and free flow is allowed from port 1 to 2.When the solenoid is energized the pilot poppet is pulled off the seat allowing the valve to open in both directions.
