bis 23 L/Min.
Danfoss/Eaton Vickers Model SV5-8-C
Cavity C-8-2 Size 8
Um bestellen zu können, müssen Sie sich anmelden.
Sie haben noch kein Login?
Klicken Sie hier, um Ihr Login anzufordern.
Varianten
| Artikel-Nr. | Variante | Model Code | max. Betriebsdruck [bar] | max. Durchfluss [L/Min] | Anschluss | Einschraubbohrung | Dichtung | Ventilstellung |
|---|---|---|---|---|---|---|---|---|
| 307 143 010 | 1 | SV5-8-C-000 | 210 | 23 | cartridge only | C-8-2 | Buna-N | normally closed |

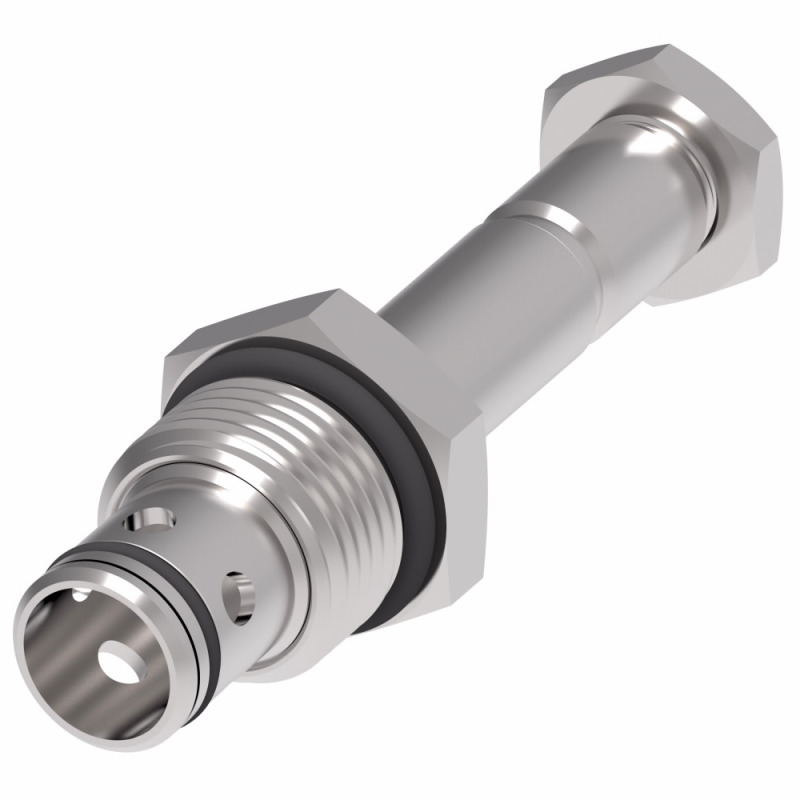

Danfoss/Eaton SV5-8-C/CM - Solenoid Valve

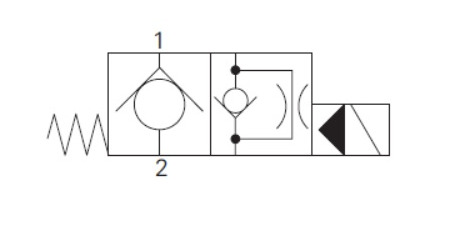

Poppet type, normally closed solenoid valveOperation
In the de-energized position the valve blocks flow from port 2 to 1 and free flow is allowed from port 1 to 2.When the solenoid is energized the pilot poppet is pulled off the seat allowing the valve to open from port 2 to 1. in the reverse direction the flow is restricted by the pilot orifice.
