Danfoss/Eaton Vickers Model SV5-8-O / SV5-8-O-S
Cavity C-8-2 Size 8
Um bestellen zu können, müssen Sie sich anmelden.
Sie haben noch kein Login?
Klicken Sie hier, um Ihr Login anzufordern.
Achtung: Letzte verfügbare Teile!
Lieferdatum
Artikel-Nr. | Variante | Model Code | max. Betriebsdruck [bar] | max. Durchfluss [L/Min] | Anschluss | Einschraubbohrung | Dichtung | Hinweis | Ventilstellung |
---|---|---|---|---|---|---|---|---|---|
307 143 001 | 1 | SV5-8-O-000 | 210 | 23 | cartridge only | C-8-2 | Buna-N | normally open | |
307 143 003 | 2 | SV5-8-O-S-000 | 210 | 23 | cartridge only | C-8-2 | Buna-N | Nothandbetätigung: ScrewType | normally open |
Model Code | SV5-8-O-000 |
Model Code | SV5-8-O-S-000 |
max. Betriebsdruck [bar] | 210 |
max. Betriebsdruck [bar] | 210 |
max. Durchfluss [L/Min] | 23 |
max. Durchfluss [L/Min] | 23 |
Anschluss | cartridge only |
Anschluss | cartridge only |
Einschraubbohrung | C-8-2 |
Einschraubbohrung | C-8-2 |
Dichtung | Buna-N |
Dichtung | Buna-N |
Hinweis | Nothandbetätigung: ScrewType |
Ventilstellung | normally open |
Ventilstellung | normally open |

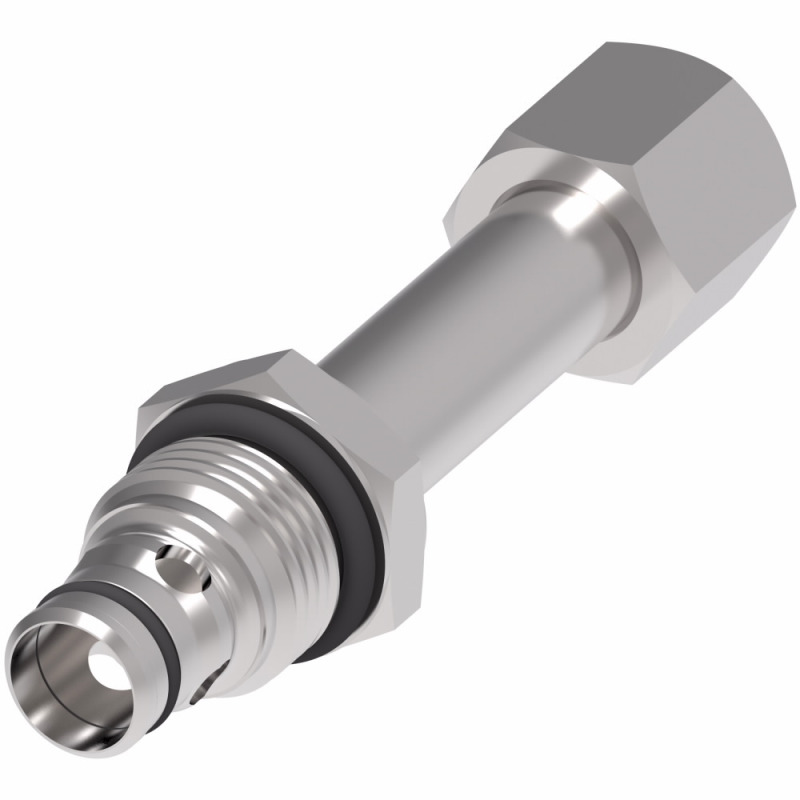

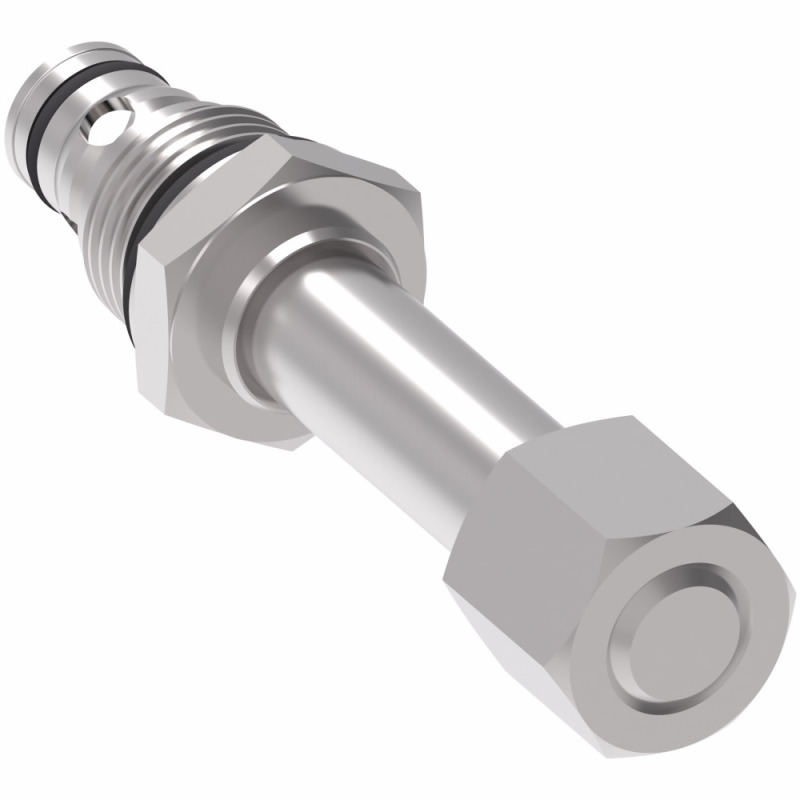

Danfoss/Eaton SV5-8-O/OP/OS - Solenoid Valve
Poppet type, normally open solenoid valve

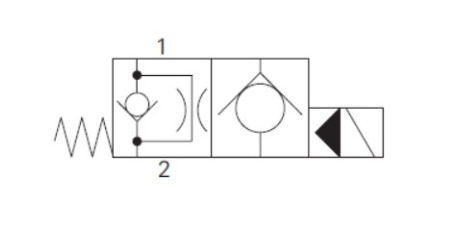

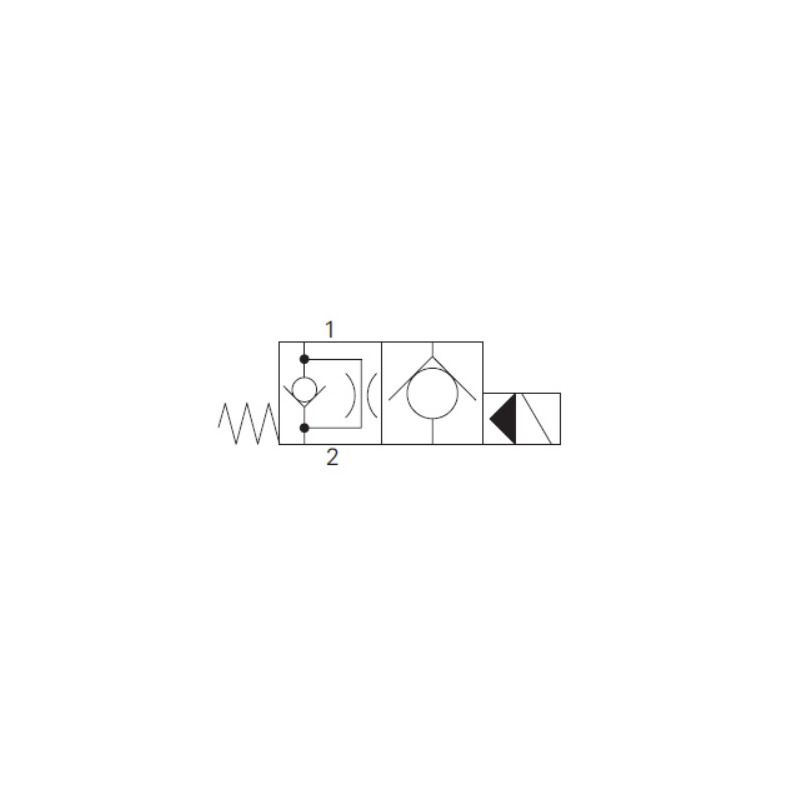

Operation
In the de-energized position the valve allows free flow from port 2 to 1 and a restricted flow through the pilot orifice from port 1 to 2.
When the solenoid is energized the pilot poppet closes the orifice and the valve closes blocking flow from port 2 to 1 while allowing free flow from port 1 to 2.
