Danfoss/Eaton Vickers Model SV3-10-O/SV3-10-O-P
Cavity C-10-2 Size 10
Um bestellen zu können, müssen Sie sich anmelden.
Sie haben noch kein Login?
Klicken Sie hier, um Ihr Login anzufordern.
Achtung: Letzte verfügbare Teile!
Lieferdatum
Artikel-Nr. | Variante | Model Code | max. Betriebsdruck [bar] | max. Durchfluss [L/Min] | Anschluss | Einschraubbohrung | Dichtung | Hinweis |
---|---|---|---|---|---|---|---|---|
307 142 455 | 1 | SV3-10-O-000 | 210 | 45 | cartridge only | C-10-2 | Buna-N | |
307 142 459 | 2 | SV3-10-O-P | 210 | 45 | cartridge only | C-10-2 | Buna-N | Nothandbetätigung: PushType |
Model Code | SV3-10-O-P |
Model Code | SV3-10-O-000 |
max. Betriebsdruck [bar] | 210 |
max. Betriebsdruck [bar] | 210 |
max. Durchfluss [L/Min] | 45 |
max. Durchfluss [L/Min] | 45 |
Anschluss | cartridge only |
Anschluss | cartridge only |
Einschraubbohrung | C-10-2 |
Einschraubbohrung | C-10-2 |
Dichtung | Buna-N |
Dichtung | Buna-N |
Hinweis | Nothandbetätigung: PushType |

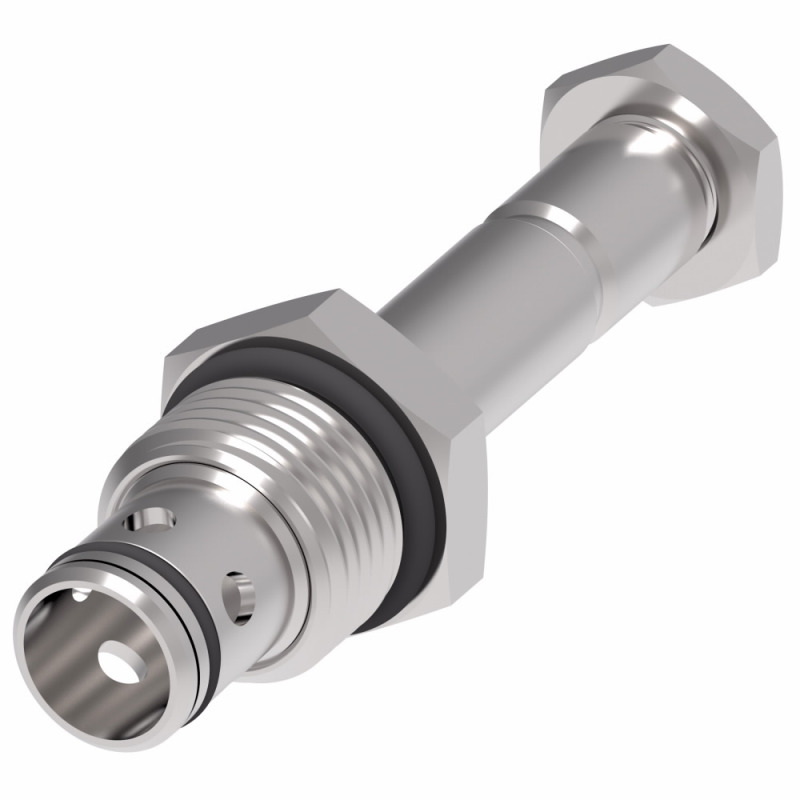

Danfoss/Eaton Vickers SV3-10-O/OP/OS - Solenoid Valve

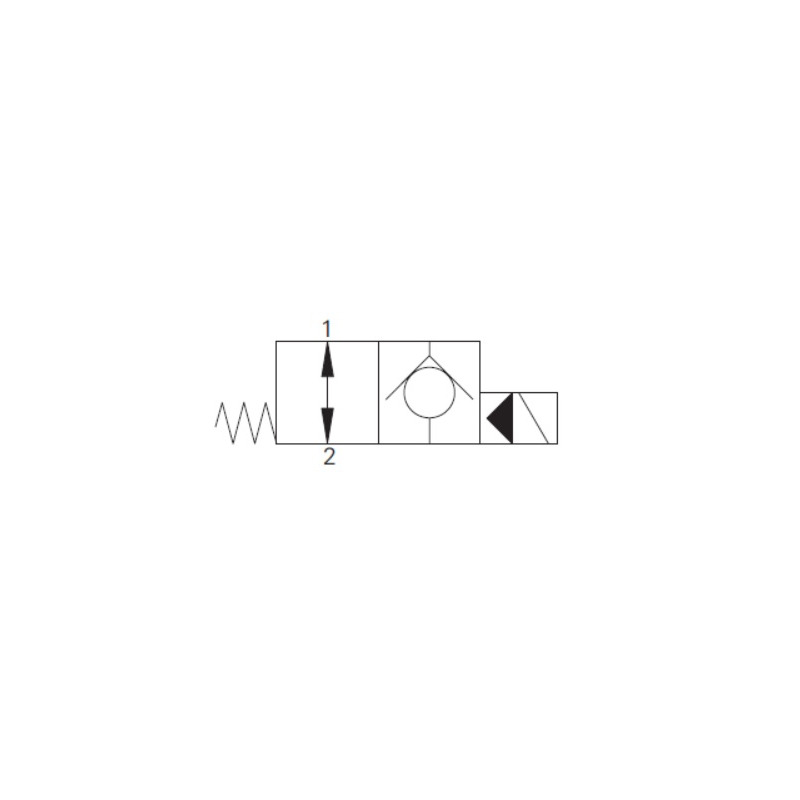

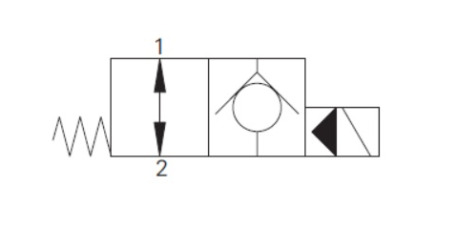

Poppet type, normally open solenoid valve (free reverse flow)
Operation
Inthe de-energized position the valve allows free flow in both directions.
When the solenoid is energized the pilot poppet closes the orifice and the valve closes blocking flow from port 2 to 1 while allowing free flow from port 1 to 2.
