> >>>3000 PSI Stahl S355J2
3000 PSI Stahl ASTM/A 105 Vergrössern

3000 PSI Stahl S355J2

komplett mit M-Schrauben und O-Ringen

Um bestellen zu können, müssen Sie sich anmelden.
Sie haben noch kein Login?
Klicken Sie hier, um Ihr Login anzufordern.

Login anfordern

Varianten

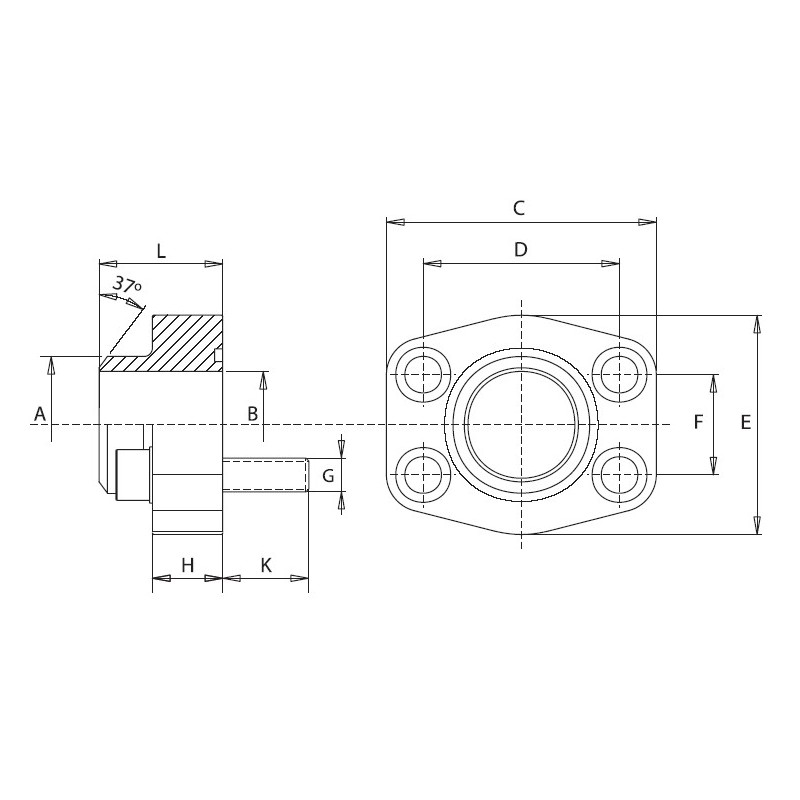

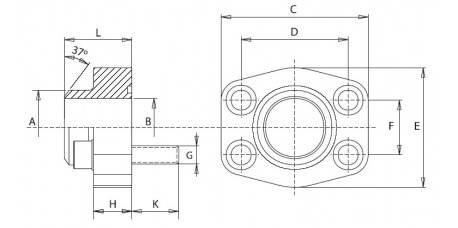

Artikel-Nr.VarianteModel Codemax. Betriebsdruck [bar]A ["]A [mm]B [mm]C [mm]D [mm]E [mm]F [mm]H [mm]K [mm]L [mm]O-RingG
070 514 2051C.F.S. 080-ST-M3451/2"21.6135838.14817.5161436AN210M8
070 514 2072C.F.S. 100-ST-M3453/4"27.2196747.65022.2181636AN214M10
070 514 2103C.F.S. 102-ST-M3451"34.5257152.45426.2181638AN219M10
070 514 2114C.F.S. 104-ST-M2751 1/4"42.8318158.77030.2211841AN222M10
070 514 2155C.F.S. 106-ST-M2001 1/2"48.6389569.87835.7251844AN225M12
070 514 2206C.F.S. 108-ST-M2002"615010477.89042.9251845AN228M12
070 514 2257C.F.S. 110-ST-M1702 1/2"76.66311688.910250.8251850AN232M12
070 514 2308C.F.S. 112-ST-M1353"8973136106.412561.9272550AN237M16
070 514 2359C.F.S. 114-ST-M353 1/2"10389154120.713869.8272550AN241M16
070 514 24010C.F.S. 116-ST-M354"11599164130.214877.8272550AN245M16

Details

Model CodeC.F.S. 112-ST-M
Model CodeC.F.S. 106-ST-M
Model CodeC.F.S. 100-ST-M
Model CodeC.F.S. 116-ST-M
Model CodeC.F.S. 110-ST-M
Model CodeC.F.S. 104-ST-M
Model CodeC.F.S. 080-ST-M
Model CodeC.F.S. 114-ST-M
Model CodeC.F.S. 108-ST-M
Model CodeC.F.S. 102-ST-M
max. Betriebsdruck [bar]35
max. Betriebsdruck [bar]200
max. Betriebsdruck [bar]345
max. Betriebsdruck [bar]135
max. Betriebsdruck [bar]200
max. Betriebsdruck [bar]345
max. Betriebsdruck [bar]35
max. Betriebsdruck [bar]170
max. Betriebsdruck [bar]275
max. Betriebsdruck [bar]345
A ["]3 1/2"
A ["]2"
A ["]1"
A ["]3"
A ["]1 1/2"
A ["]3/4"
A ["]4"
A ["]2 1/2"
A ["]1 1/4"
A ["]1/2"
A [mm]103
A [mm]61
A [mm]34.5
A [mm]89
A [mm]48.6
A [mm]27.2
A [mm]115
A [mm]76.6
A [mm]42.8
A [mm]21.6
B [mm]73
B [mm]38
B [mm]19
B [mm]99
B [mm]63
B [mm]31
B [mm]13
B [mm]89
B [mm]50
B [mm]25
C [mm]164
C [mm]116
C [mm]81
C [mm]58
C [mm]154
C [mm]104
C [mm]71
C [mm]136
C [mm]95
C [mm]67
D [mm]106.4
D [mm]69.8
D [mm]47.6
D [mm]130.2
D [mm]88.9
D [mm]58.7
D [mm]38.1
D [mm]120.7
D [mm]77.8
D [mm]52.4
E [mm]148
E [mm]102
E [mm]70
E [mm]48
E [mm]138
E [mm]90
E [mm]54
E [mm]125
E [mm]78
E [mm]50
F [mm]69.8
F [mm]42.9
F [mm]26.2
F [mm]61.9
F [mm]35.7
F [mm]22.2
F [mm]77.8
F [mm]50.8
F [mm]30.2
F [mm]17.5
H [mm]18
H [mm]27
H [mm]25
H [mm]21
H [mm]16
H [mm]27
H [mm]25
H [mm]18
H [mm]27
H [mm]25
K [mm]25
K [mm]18
K [mm]16
K [mm]25
K [mm]18
K [mm]16
K [mm]25
K [mm]18
K [mm]18
K [mm]14
L [mm]50
L [mm]44
L [mm]36
L [mm]50
L [mm]50
L [mm]41
L [mm]36
L [mm]50
L [mm]45
L [mm]38
O-RingAN225
O-RingAN214
O-RingAN245
O-RingAN232
O-RingAN222
O-RingAN210
O-RingAN241
O-RingAN228
O-RingAN219
O-RingAN237
GM16
GM12
GM10
GM16
GM12
GM10
GM8
GM16
GM12
GM10
